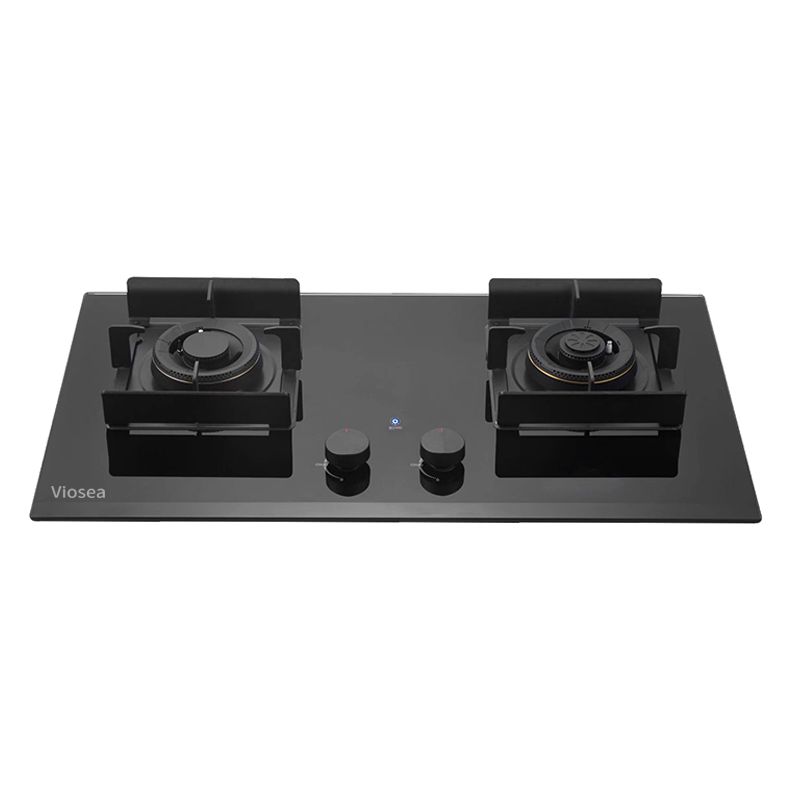

One Button High Efficiency Stir Fry Gas Stove
- Viosea
- China, guangdong
- 25-30 working days
- good
1. Round stand for 750*430*6 windproof four-ear gill
2. The burner is designed with a fashionable appearance specifically for this model
3. Equipped with a thermocouple flame-out protection device
4. 90-degree right double-gun straight insertion structure for quick and convenient installation
5. Tempered glass panel(780*440*6mm)
6. Specialized adjustable cut-out size (compatible with 680*380mm*R20 cut-outs)
7. One-touch pressure boost for intense stir-frying flames
Specification | Details |
Ignition Method | Pulse Ignition |
Air Intake Method | Bottom Air Intake |
Thermal Load (NG/LPG) | NG: 5.2kW / LPG: 5.0kW |
Energy Efficiency Grade (NG/LPG) | Class A |
Thermal Efficiency | 63% |
Venturi Tube Spacing (mm) | 440 |
Panel Color | Black |
Carton Size (mm) | 855*500*205 |
Product Size (mm) | 780*440*150 |
Cut-Out Size (mm) | K4/650*350*R20 |
Net Weight / Gross Weight (kg) | 11 / 12.6 |
1. Round stand for 750*430*6 windproof four-ear gill
2. The burner is designed with a fashionable appearance specifically for this model
3. Equipped with a thermocouple flame-out protection device
4. 90-degree right double-gun straight insertion structure for quick and convenient installation
5. Tempered glass panel(780*440*6mm)
6. Specialized adjustable cut-out size (compatible with 680*380mm*R20 cut-outs)
7. One-touch pressure boost for intense stir-frying flames
