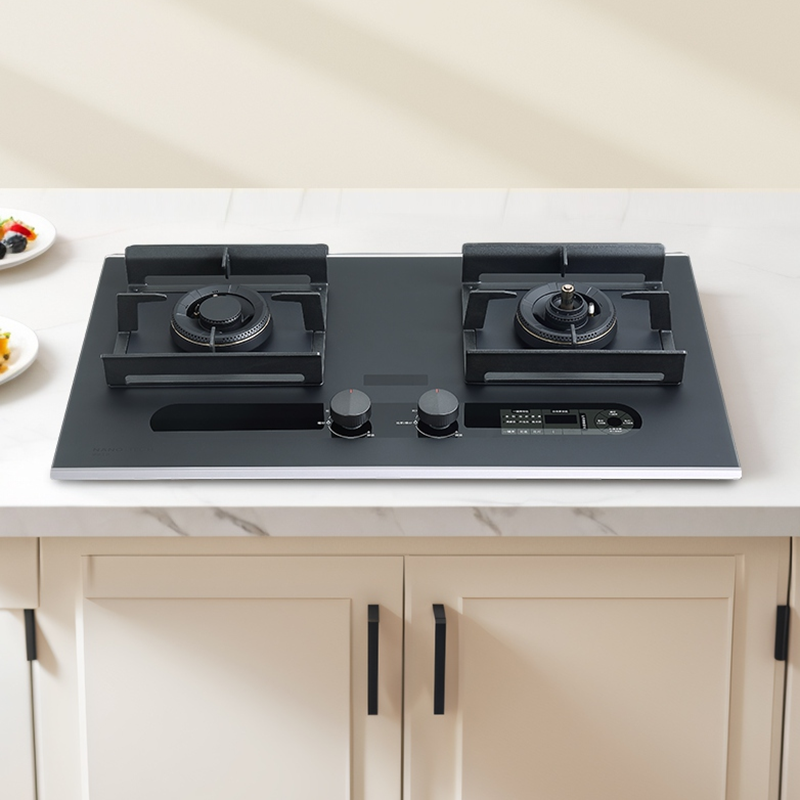

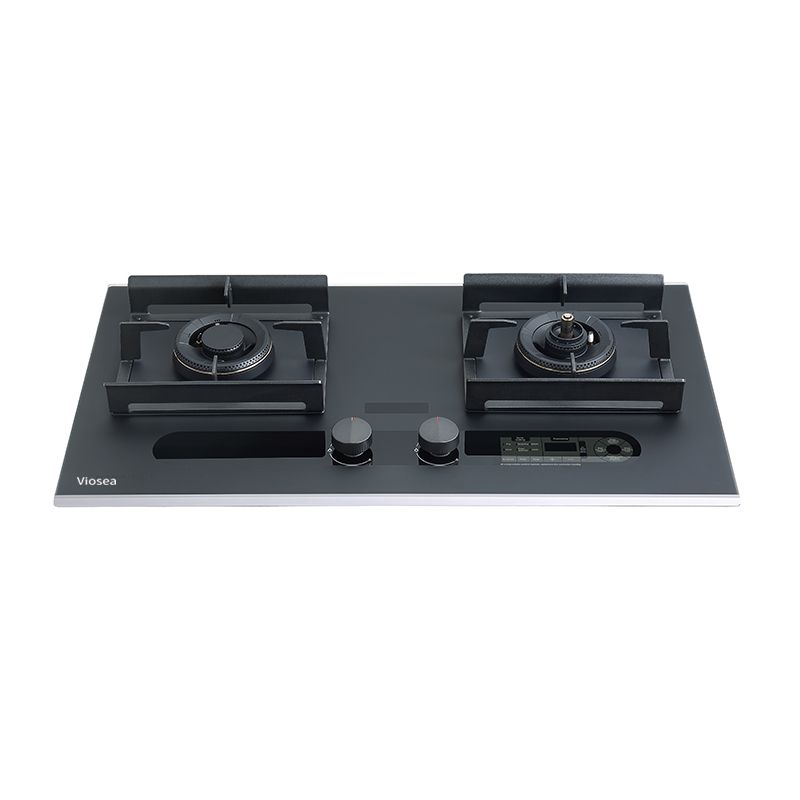

Smart High-End Dual Cooktop
- Viosea
- China, guangdong
- 25-30 working days
- good
1. Stylish design with extended lifespan for the dedicated burner.
2. 90° right dual-gun valve, one-valve dual-control, ultimate low-flame design.
3. Adjustable-size, high-end, milky white dedicated base shell.
4. AI oil temperature display system with color-coded lights for temperature judgment.
5. 230° wide-range synchronized flame adjustment.
6. Automatic cruise mode switches to low flame and turns off automatically.
7. Safety stove with 30-minute auto-shutdown.
8. Recipe functions: one-touch soup making, peanut frying, steak grilling, steaming, and pan-frying.
9. Temperature setting: adjustable from 90-280°C based on ingredients.
10. Timer function (right side): set for 1-180 minutes.
11. Interconnection function: RF signal for range hood interconnection (optional).
Main Technical Parameters
Ignition Method: Pulse Ignition
Air Intake Method: Bottom Air Intake
Thermal Load (Natural /Y): T: 5.2kW / Y: 5.0kW
Energy Efficiency Grade (T/Y): Grade 1
Thermal Efficiency: 63%
Burner Spacing (mm): 440
Panel Color: Black
Carton Dimensions (mm): 855*500*205
Product Dimensions (mm): 800*450*150
Cutout Dimensions (mm): K3/630*330*R20
Net/Gross Weight (kg): 11.5/13.1
Overview of Important Components
Component Name | Specification Parameters |
Panel | 800*450*6mm/Full Black Nano Matte Glass + Single Beveled Aluminum Strip |
Bottom Plate | Integrated Pulse Hole 650*350*R20 |
Burner Cap Outer 1 | Anti-Dry-Burning Center/Left |
Burner Cap Outer 2 | Flat Center/Right |
Venturi Tube 1 | Aviation Aluminum Burner Head/Regular |
Venturi Tube 2 | Aviation Aluminum Burner Head/Anti-Dry-Burning |
Gill | Enamel Matte and Rectangular Bent Grate |
Knob | Special Model Enlarged Knob (Starry Gray) |
Pulse | Electronic Pulse Ignition |
Display | Smart Control Display |
Probe | NTC Intelligent Temperature Probe |
